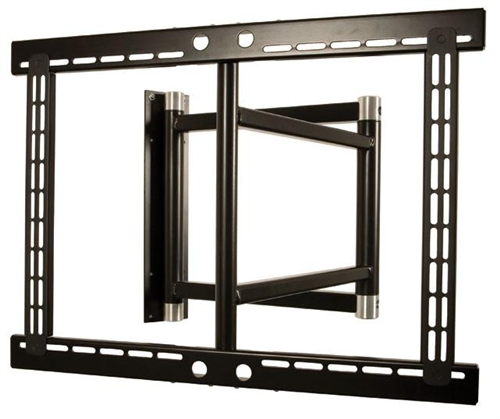

Double Arm Swivel TV Bracket for 32" - 46" (Extends 39.3")
Swivel TV Bracket extends 39.5 in

Our Price: $1,540.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-DA-39EXT

Description

This precision made wall bracket is a custom made to order manual TV swivel bracket that allows a 32" - 46" flat panel screen to be pulled forward and rotated over 90 degrees in either direction. This extra long extension bracket is the ideal problem solver when typical brackets will not work.

  • Solid steel construction holds display securely
  • Bi-Directional Swivel up to over 90 degrees in either direction depending on needs
  • Custom cut arms to any length up to 500mm per arm
  • Brushed Aluminum caps for superb aesthetic finish
  • Any color of arms available upon request

Note: Please allow 2 -3 weeks for custom building time.
Features
TV size range: 32" - 46"
Fits TV types: Flat Screen LED, LCD and Plasma
Weight capacity: 110.2 lbs (50.03kg)
Max mounting pattern: 600x400mm
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600,300mm, 600x400mm
Minimum Extension 4.1" (105mm)
Maximum Extension: 39.3" (998.2mm)
Swivel: +90/90° degrees (left/right)
Tilt: None
Mounting surface: wood joist, structural wood or structural concrete
Mounting: single stud
Wall Plate Dimensions: 8.7" w x 26.4" h
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: Black, White
Mounting Hardware Included: Yes
