Heavy Duty Articulating Wall Mount fits Smart Board MX275-V2 75"

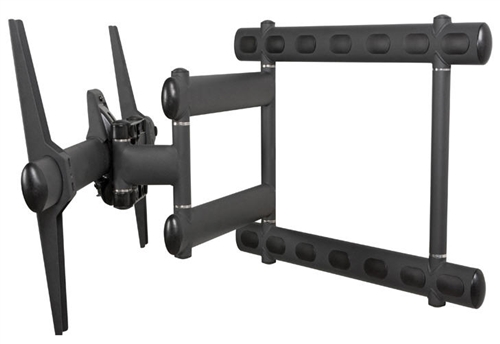

Smart Board MX275-V2 articulating wall mount bracket

Alternative Views:

Our Price: $894.00

Availability:: Usually ships in 24 - 72 hours
Product Code: PRE-SMARTBOARD-MX275-V2

Description

Wall Mount Overview

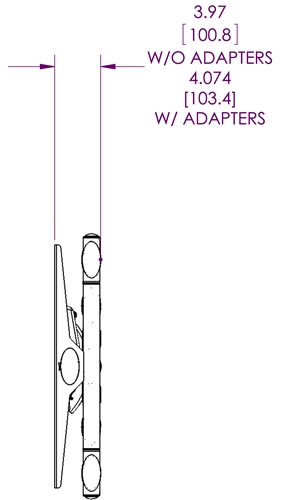

This heavy duty universal wall mount is fully compatible with Smartboard MX275-V2 75" displays. This revolutionary design features our patented Radial Glide Technology which offers smooth tilt adjustment of +/-10°. You can pull your television up to 26” from the wall and push it back to just under 4” off the wall when collapsed. All of your cables can be hidden inside our innovative cable management ports.

Wall mounting bracket requirements:
Fit VESA 600x400mm mounting holes
Support 142.0 lbs (TV weight without stand)

Features

Technical Description

Fits displays from 75”- 98"

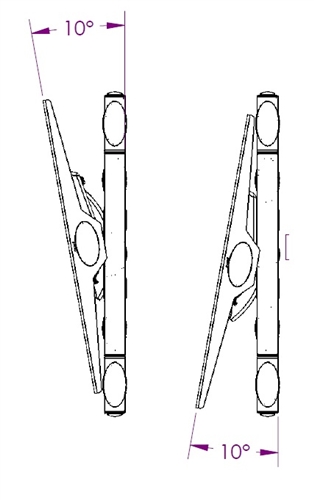

10° tilt up or down
20 degrees swivel

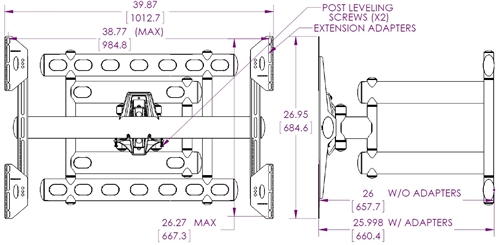

4” - 26" extension from wall
VESA: 225x225 up to 985x665
Horizontal hole mounting width: 8.86" - 38.8"
Vertical hole mounting height: 8.86" - 26.2"
Cable routing inside arms
Mounts to wood studs on 16" and 24" centers
Supports TVs up to 300 lbs.
Patented Radial Glide Technology
Color Black
