  Home > Sharp TV Wall Mounts > Sharp Aquos 70" > PN-L702B >

Fixed Position Flat Wall Mount for Sharp PN-L702B 70" Smart Board

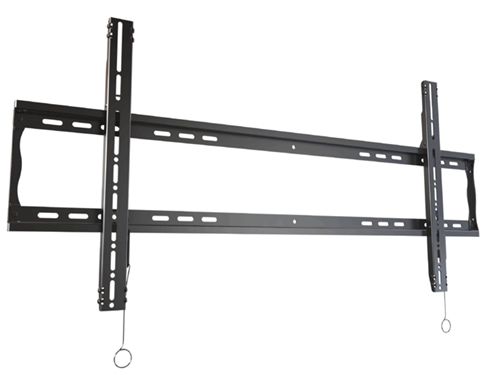

Sharp PN-L702B Heavy duty fixed Position wall Mount

Alternative Views:
List Price: $249.99
Our Price: $202.00


Availability:: Usually Ships in 24 to 48 Hours
Product Code: C-FLATSHARP-PN-L702B

Description


Wall Mount Overview

Flat mount with triple stud mounting that facilitates the most secure installation for heavier large-format Sharp PN-L702B 70" Smart Board displays. Includes a horizontal slide mechanism that helps center the TV on the wall as well as post-installation leveling that compensates for uneven ceilings and enables a perfectly positioned TV. A unique all steel click-in-place feature simplifies the installation by eliminating the need to reach up behind the TV with a wrench or screwdriver to secure or remove it
Features

Technical Description

Fits 60" - 85” TVs
Fixed position Flat
300lb (136kg) Weight capacity
Max mounting pattern 800x400mm
Fits VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400m

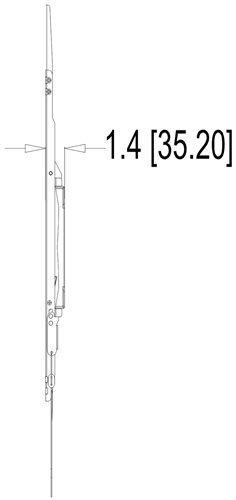

1.4” (35.6mm) Depth from wall
+-5 deg Post installation leveling
Lateral adjustment varies with screen size
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required)
Stud spacing dual studs on 16”, 20”, 24” on center, triple studs on 16” center
High-grade cold rolled steel construction

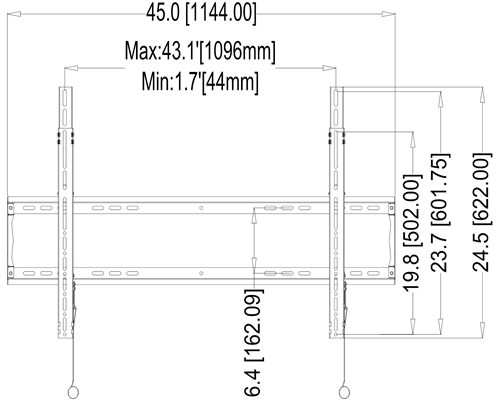

Wall Plate dimensions 45" w x 8.58" h (1144mm x 218mm)
Color Black
Warranty 10 years
