Sharp LC-80UH30U Precision Crafted Swivel Wall Mounting Bracket
Sharp LC-80UH30U Swivel Wall Bracket - Future Automation PS60

Alternative Views:
Our Price: $1,200.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-PS60-SHARP-LC-80UH30U

Description

This Super Smooth Precision Crafted Bracket allows Samsung UN85HU8550 HD TVs to be moved smoothly and easily in either direction. The PS Bracket allows perfect parallel movement and the freedom and flexibility to view your Samsung UN85HU8550 flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing in walls for a completely flush finish.

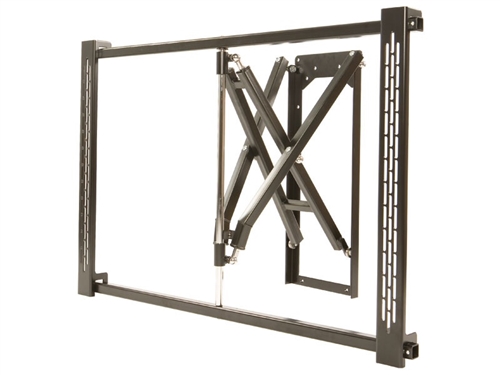

  • Unique Scissor Design allows easy one handed operation
  • Solid Steel Construction Holds Screen Securely
  • Bi-Directional Swivel up to 45 degrees in either direction
  • 264lb capacity

Note: Please allow 2 -3 weeks for custom building time.
Features
Fits Sharp Model: LC-80UH30U
Fits TV types: Flat Screen LED, LCD and Plasma
Weight capacity: 264.55 lbs (119.7kg)

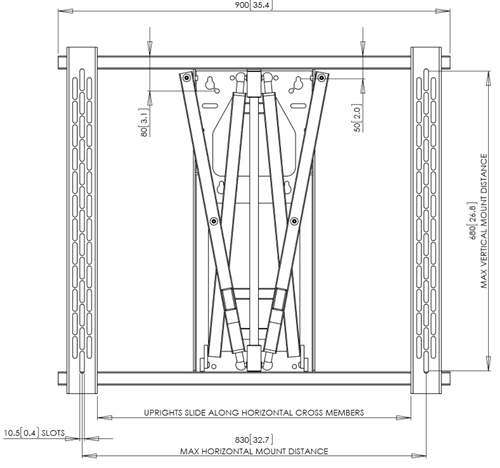

Max mounting pattern: 830x680mm (32.7" x 26.8")
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm
Minimum Extension 3.1" (78.7mm)

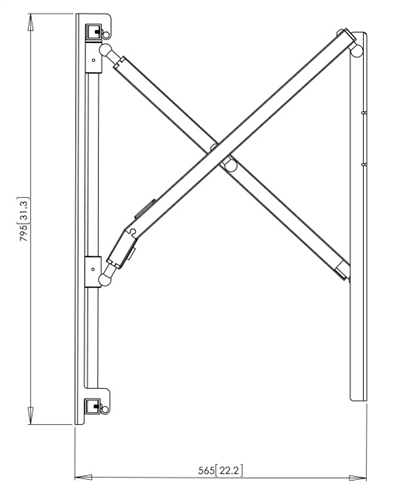

Maximum Extension: 22.2" (563.8mm)

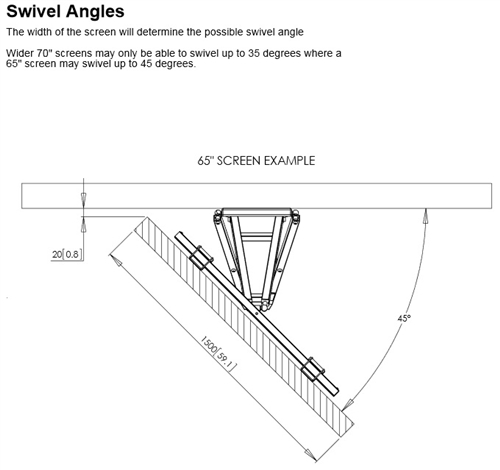

Swivel: +45/45° degrees (left/right)
Tilt: None
Mounting surface: wood joist, structural wood or structural concrete
Mounting: Custom Plate
Wall Plate dimensions: 11.0" w x 28.1" h (279mm x 715mm)
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: Black
Mounting Hardware Included: Yes
