Sharp LC-80UE30U Electric Swivel Wall Mount Bracket
Sharp LC-80UE30U Electric Swivel TV Wall Bracket QA2-60

Alternative Views:
Our Price: $10,890.00


Availability:: Usually Ships in 2-3 Weeks
Product Code: FA-QA2-SHARP-LC-80UE30U

Description


A truly revolutionary designed motorized wall bracket for Sharp LC-80UE30U 80" 4K TVs, the Quad Arm is the most elaborate and advanced Sharp LC-80UE30U compatible TV wall mount offered on the market. Allowing 100 degrees bi-directional swivel with parallel forward track, the Quad Arm offers a step forward in functionality when swiveling a flat screen TV. Full cable management and sleek design complete a truly unique product.

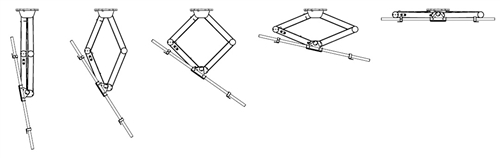

  • Parallel Track for beautifully tight recessed finish
  • Bidirectional rotating head for 100 degrees swivel left/right
  • Smooth quiet motion
  • Full Cable Management
  • Range of preset positions

Mounting notes please read:

1. When attaching to the wall the wall plate dimensions are 9.1" w x 16.9". You will need to add some heavy duty structure for support to the wall to attach the wall plate to.

Features

Technical Description

Fits most 55" - 85" TV
Variable speed electric motor
Programmable IR remote with presets
6.2" depth collapsed

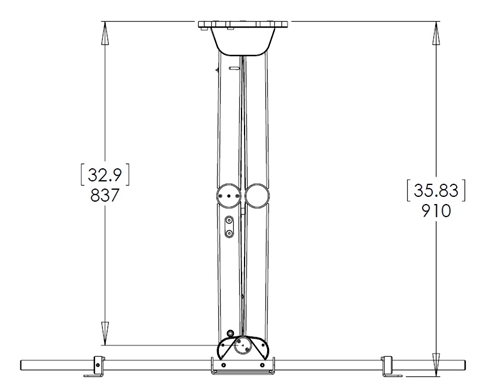

35.83" Extension from back of in-wall box
31.1" Extension outside wall
40° swivel both left and right
Landscape orientation
Integrated cable management system
VESA hole spacing Minimum: 200mm x 200mm (7 7/8" x 7 7/8")
VESA hole spacing Maximum: 600mm x 400mm (23.5/8" x 15.3/4")
Wall Box dimensions: 45.8" W x 33.9" H x 6.2" D
Weight Capacity: 176 lbs
Color: Black
Controls: RS232/Contact Closure/IR
5yr Manufacturer Warranty
Warning: Use caution when mounting into metal studs. You run the risk of pull out. Hire a professional if needed.<
