Sharp LC-70UD1U 70" TV Ceiling Bracket with 3ft-5ft adjustable pole

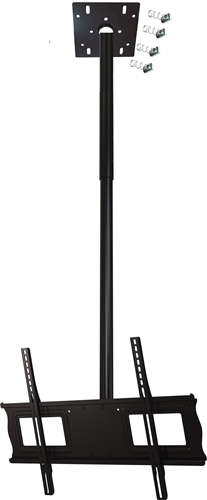

Sharp LC-70UD1U ceiling mount - Crimson C63-60A

List Price: $599.99
Our Price: $489.99


Availability:: Usually Ships in 24 - 48 Hours
Product Code: CRIM-CEIL-SHARP-LC-70UD1U

Description

Needing to mount a Sharp LC-70UD1U 70" LED Smart TV from the ceiling. This complete ceiling kit for attaching to unistrut features a 3ft - 5ft adjustable pole that is adjustable in 1" increments, continuous tilt of 20° forward with 360° rotation and pin-locking pre-set tilt positions at 5º, 10º, 15º and 20º. Makes a secure Sharp LC-70UD1U flat screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the universal adapter in place. Compatible with all 1.5" NPT threaded pipe.

Sharp LC-70UD1U ceiling mount requirements
VESA 400x400mm hole mounting pattern
Support 121.3 lbs of weight (without stand)

  • Universal design
  • VESA compatible
  • Fast and easy installation
  • Up to 20° of continuous tilt and 360° rotation
  • Pin-locking incremental tilt adjustment
  • Post installation screen leveling without use of tools
  • Mounts to any 1.5" NPT threaded pipe
  • Pre-sorted hardware pack for easy installation
Features
Fits Sharp Model
 LC-70UD1U
Fits TV types: Flat Screen LED, LCD and Plasma
Weight capacity: 150lb (68kg)
Max mounting pattern: 753x501mm
VESA mounting patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 660x330mm, 600x400mm
Tilt: +20°/-0°
1.5" NPT thread compatible YES
Pole length: 3' - 5' ft adjustable in 1" increments
Mounting surface standard 1-5/8”x1-5/8” dual unistrut channels spaced on 6.25” centers
Rotation (yaw): 360°
Roll adjustment for leveling: 6° tool less screen leveling
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: black
Mounting Hardware Included: Yes
Warranty: 10-years
