Precision Made 19.8in ext 35deg Swivel Wall Bracket for Samsung QN75QE1DAF

Samsung QN75QE1DAF swivel wall mount - Future Automation PS55 Bracket

Alternative Views:

Our Price: $583.00

Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS55-SAM-QN75QE1DAF

Description

Wall Mount Overview

This Future Automation PS55 is a ultra smooth precision crafted wall mount that fits Samsung QN75QE1DAF 75" QE1D Series displays. The bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Unique Scissor Design allows easy one handed operation
Hook on/off screen mount enables fast and easy one person fitting
16” stud bay mounting kit included for twin stud mounting
Solid Steel Construction
Bi-Directional Swivel up to 35 degrees in either direction
132 lb weight capacity

Features
Fits 55" - 75" displays
Landscape orientation
Weight capacity
132 lbs (60kg)
Max mounting pattern 400x400mm (15.7" x 15.74") VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.0" depth from wall

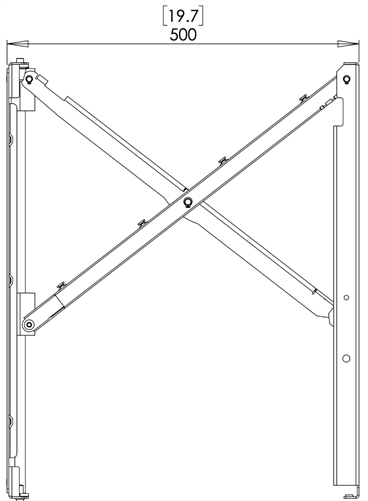

19.7" Maximum arm extension
Swivel 55" TV 50 Degrees
Swivel 65" TV 40 Degrees
Swivel 75" TV 35 Degrees
Non Tilting
Mounting surface dual studs 16" on center

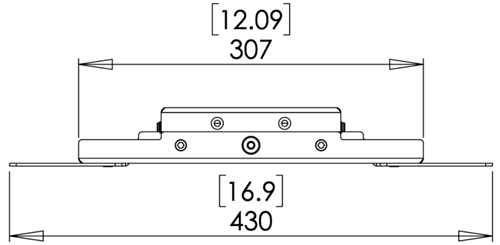

Overall mount dimensions: 24.9" H x 16.9" W
Product finish scratch resistant epoxy powder coat
Color Black
