19.7" Ext Swivel Wall Bracket for Samsung QN75LS03BSF 75" Tvs

Samsung QN75LS03BSF swivel wall bracket

Alternative Views:


Our Price: $583.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS55-SAM-QN75LS03BSF

Description


Wall Mount Overview

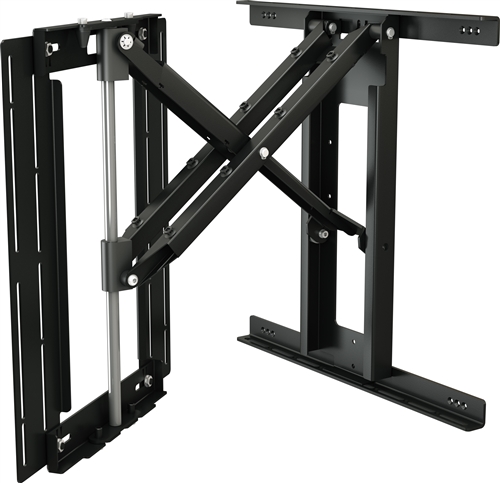

This custom made precision crafted wall mount is a perfect fit for Samsung QN75LS03BSF 75" LS03B Frame TVs. The Future Automation PS55 bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Unique Scissor Design allows easy one handed operation
Hook on/off screen mount enables fast and easy one person fitting, even with larger screens
16” stud bay mounting kit included for twin stud mounting, with horizontal bracket offset possible
Solid Steel Construction
35 degree bi-directional swivel left or right
132 lb weight capacity

Features
Fits 55" - 75" displays
Landscape orientation
Weight capacity 132 lbs (60kg)
Max mounting pattern 400x400mm (15.7" x 15.74")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.0" depth from wall

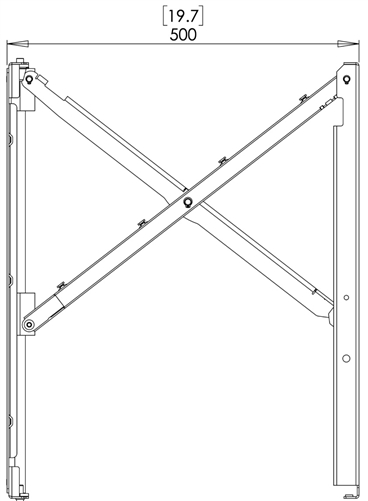

19.7" Maximum arm extension

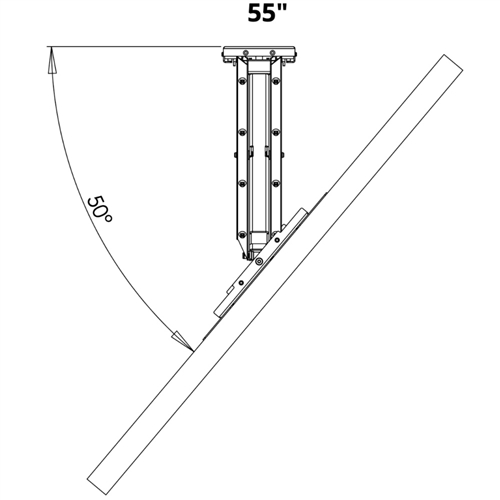

35 Degrees swivel left right
Non Tilting

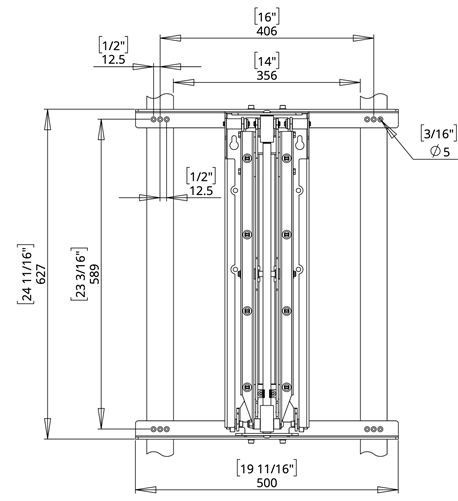

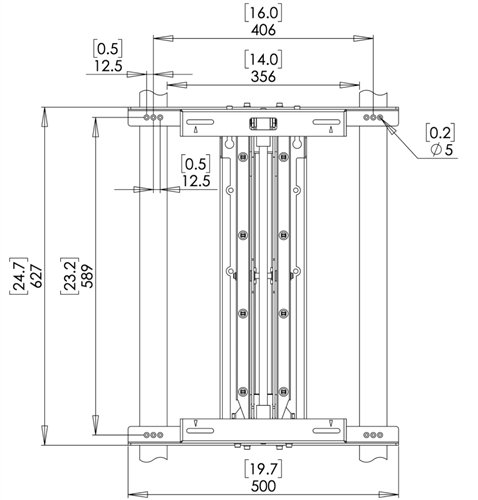

Mounting surface dual studs 16" on center

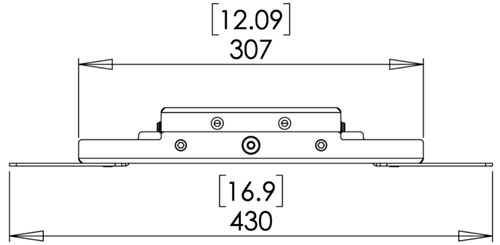

Overall mount dimensions: 24.9" H x 16.9" W
Product finish scratch resistant epoxy powder coat
Color Black
