Recessed In Wall Bracket Kit for Samsung QN55S90DAFXZA

Samsung QN55S90DAFXZA Recessed Bracket Kit

Alternative Views:


In Wall Box cutout dimensions
30.0" W x 21.3" H x 4.0" D
Our Price: $1,056.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-RECESS-SAM-QN55S90DAFXZA

Description


Recessed Mount Overview

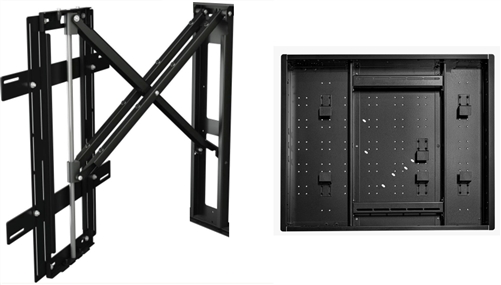

This Future Automation PS40 coupled with the WB21-2S recessed in wall box fits Samsung QN55S90DAFXZA 55 S90D OLED TVs. With the bracket being precision made it allows for effortless, one handed access behind the screen for servicing needs. The recessed in-wall box will not only allow for a flow profile fit of your TV to hang like a picture on the wall but it will also allow for installation of power supply and connection points to be discreetly concealed behind the TV.

The wall box is ideal for installing at first fix stage ensuring correct positioning of the TV and making sure that no other utilities are placed in the way.

Conceals power cords in the wall
Variable bracket mounting depth
Cable management
Cable knockout holes on side of box

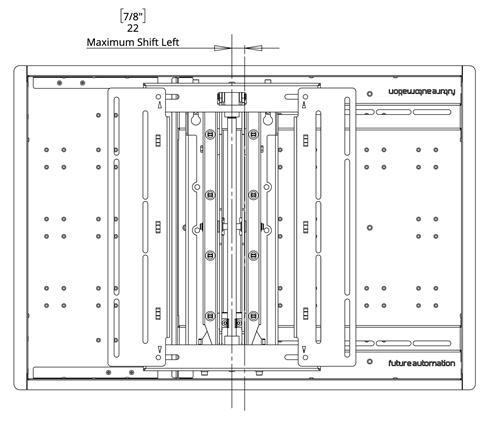

Lateral shift
Mounts to stud bay between 3 studs on 16" centers
Metal edge trims offer a cleaner finish around the installed wall box
Features

Technical Descriptions

Fits most 40" - 75" displays
Recessed in wall kit
Landscape orientation
132 lbs (60kg) Weight capacity
Max mounting pattern 400x400mm (27.0" x 19.3")
VESA mounting patterns 100x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
Back of TV is flush with wall when mounted in recess

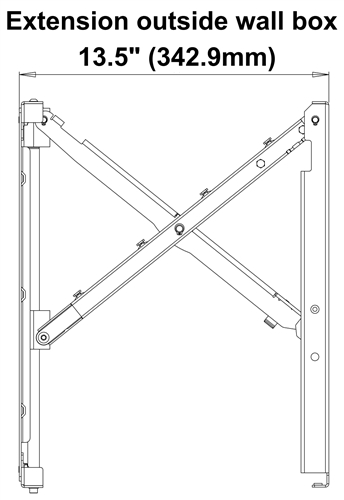

13.5" (342.9mm) maximum extension from wall when recessed
30° swivel both left and right
Non - Tilting (Flat)

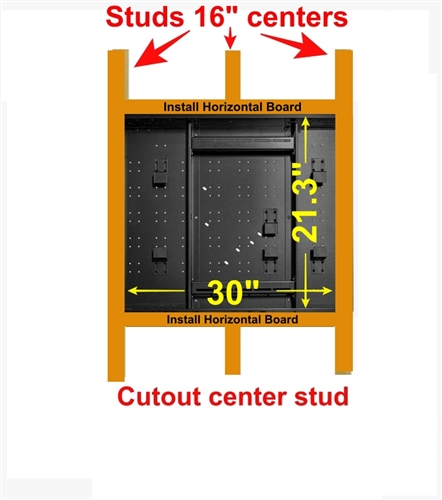

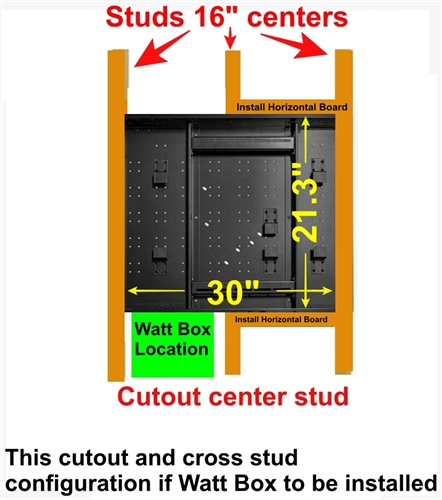

Mounts between 3 studs on 16" centers
Center stud cutout needed
In Wall Box cutout dimensions 30.0" w x 21.3" h x 4.0 d (762 x 541x 4.0mm)
Box outer dimensions 31.5" w x 22.13" h (377mm x 684mm)
Color Black
Mounting Hardware Included
