Custom Swivel Wall Bracket for Samsung QN32LS03T 32" Frame TVs
Samsung QN32LS03T Wall Bracket

Alternative Views:
Our Price: $638.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS32-SAM-QN32LS03T

Description


Wall Mount Overview

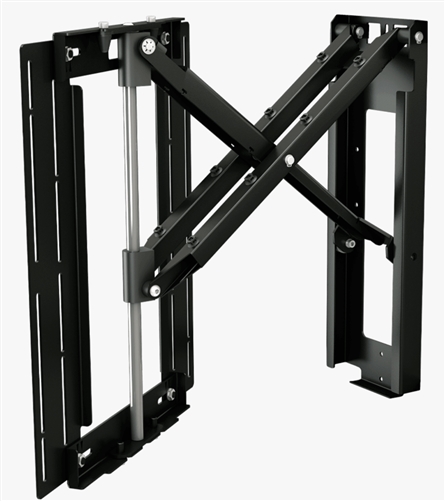

This custom made Future Automation PS32 wall mount fits Samsung QN32LS03T 32" Frame TVs. This precision crafted bracket allows ultra smooth pull out and easily swivel in either direction.

Unique Scissor Design allows easy one handed operation
Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel up to 50 degrees in either direction (based on TV width)
132 lb weight capacity

Features

Technical Description

Fits 32" - 55" displays
Weight capacity 132 lbs (60kg)

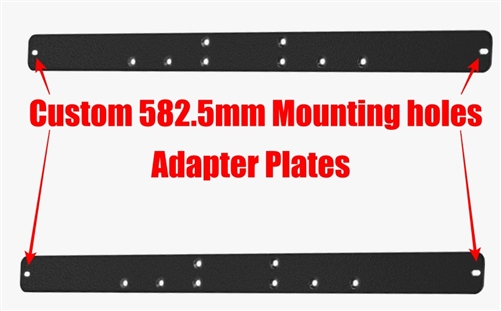

Includes custom VESA adapter plates 582.5mm (22-15/16")
Optional VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

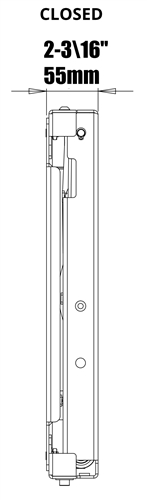

2.2" depth from wall

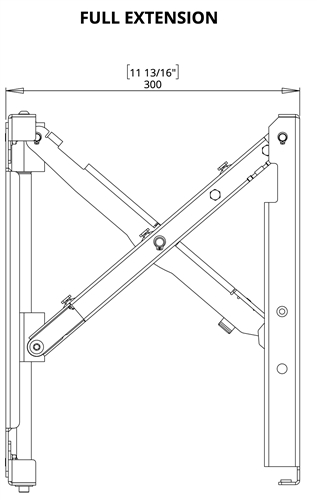

11-13/16" Maximum arm extension

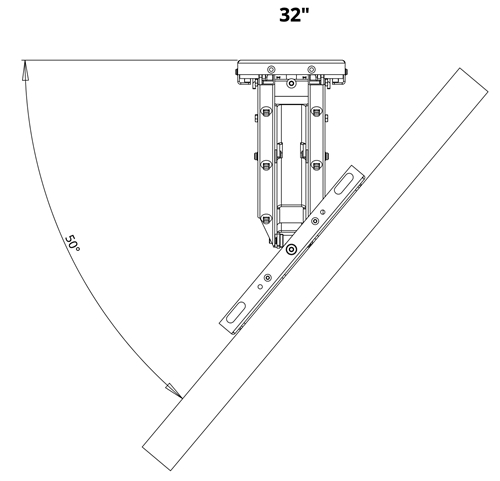

Swivel 32" TV 50 Degrees
Swivel 43" TV 36 Degrees
Swivel 55" TV 20 Degrees
Non Tilting

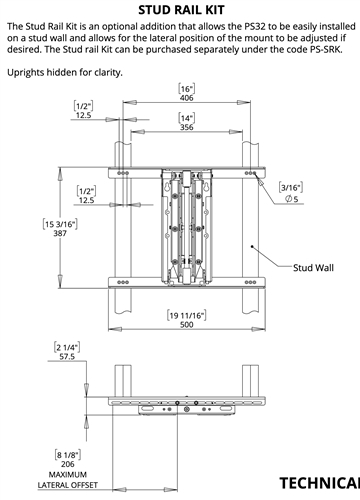

Mounting surface dual studs 16" on center
Overall mount dimensions: 15-5/16" H x 12-1/16" W
Product finish: scratch resistant epoxy powder coat
Color Black
