Effortless Pull Recessed In-Wall Box Kit 65" - 75" flat panels
Recessed InWall Box Kit 60" - 75" flat panels

Alternative Views:
Our Price: $1,826.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-INWALL60-75

Description

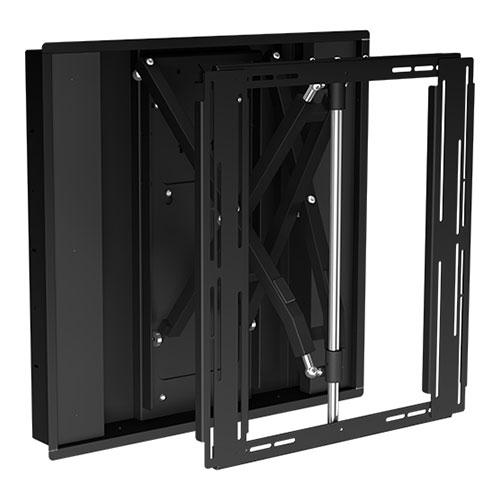

The is a precision crafted effortless pull and swivel recessed 65" - 75" TV mount with the dedicated in wall box. This in-wall box will not only allow for a flush fit of your TV it will also allow for installation of power supply and connection points to be discreetly concealed behind the TV within a closed off dedicated panel space.

Effortless, one handed operation; even with heavy screens

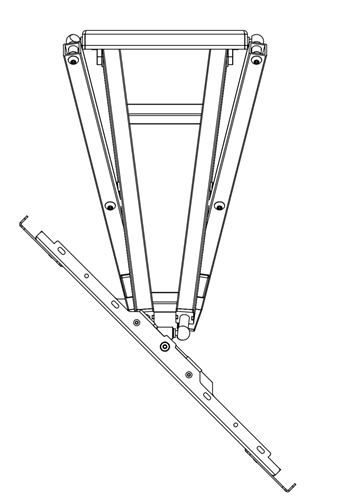

Bracket allows perfect parallel tracking before screen is pivoted left right
Bi-directional swivel motion up to 45 degrees on 65" TVs
Strong steel construction
Landscape orientation
Excellent service bracket allows for installation in tight recesses
Outer trim panel for neat finish

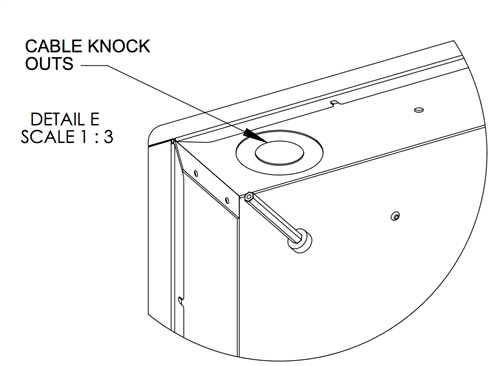

Cable knock out holes to suit makeup

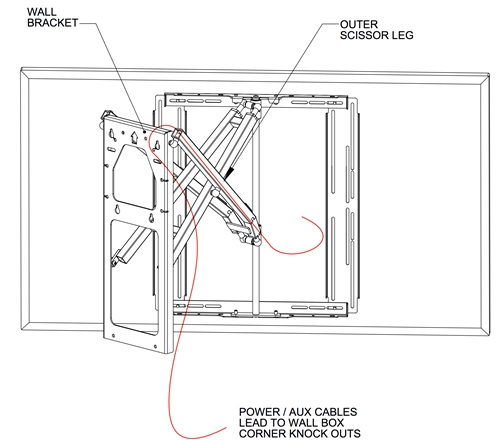

Wing panels to conceal cables, connections and balums.
Features
Typical Screen Sizes: 65" - 75"
Orientation Landscape
Minimum Depth: 0.0" (back of TV flush to wall)

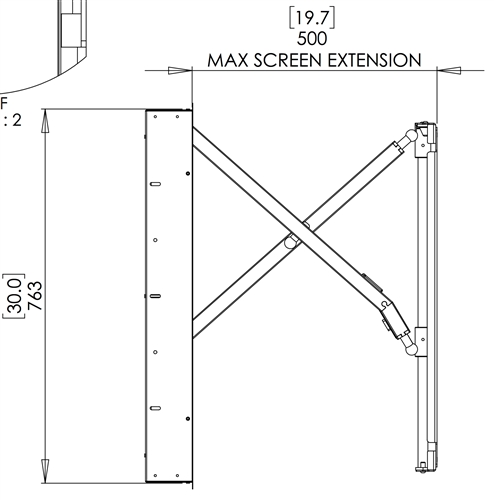

Maximum arm extension outside of box 21.4"

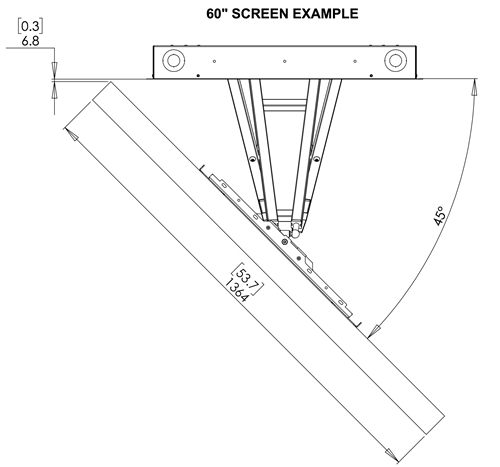

Pivot: +/- 45° left right (65" TVs 57.5" wide or less)

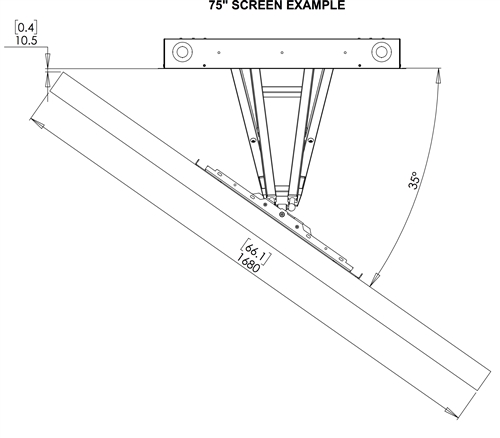

Pivot: +/- 35° left right (75" TVs 66.1" wide or less)
TV VESA ranges: 200 x 200mm - 400x400mm
Weight Capacity: 132 lbs (60kg)
Color: Black

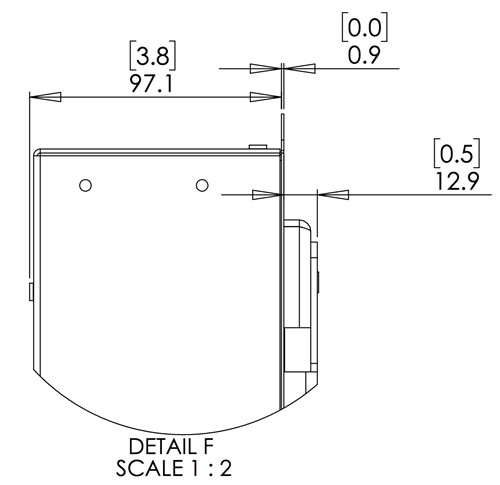

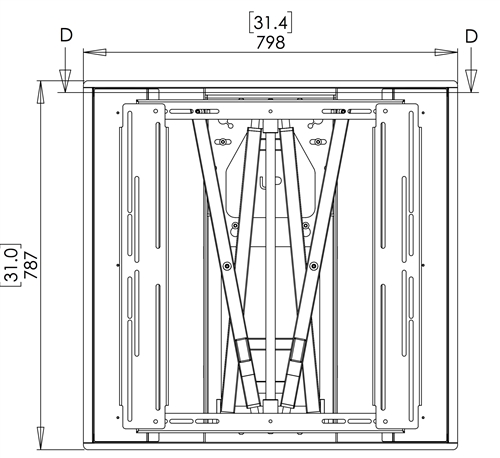

Outer Dimensions (31.5" w x 32.2" h x 3.8" (800 x 817 x 96.5mm)

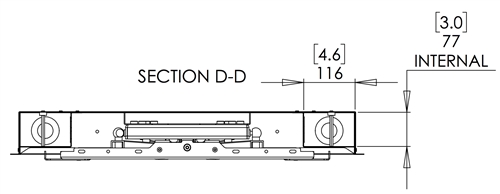

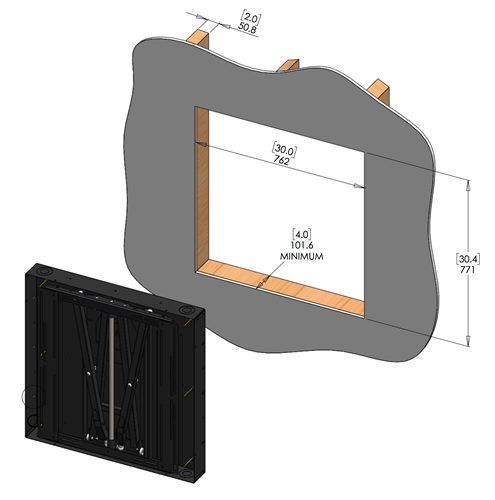

Inner In-wall box dimensions: width 29 11/16" W x 30 3/4" H x 3 11/16" D
Wall depth minimum including sheetrock 4.0" (101.6mm)

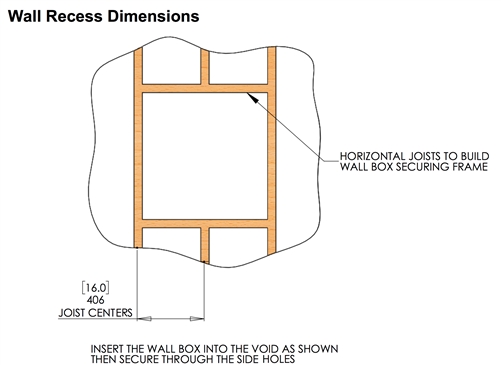

Installs between 3 wood studs on 16" center
Wall Stud Compatibility (inches): 32

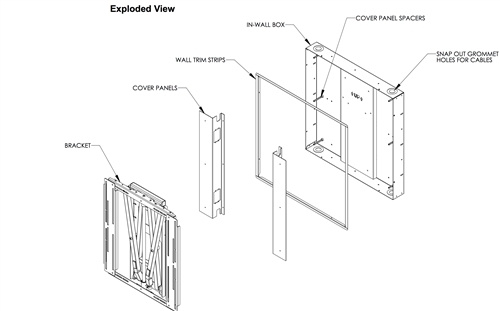

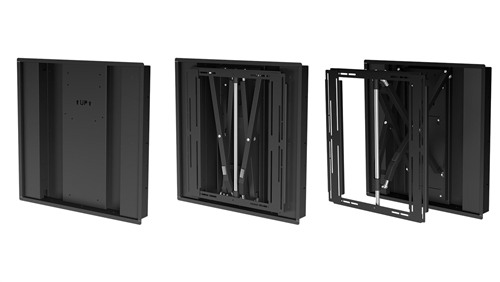

Included in kit:
In-Wall Box

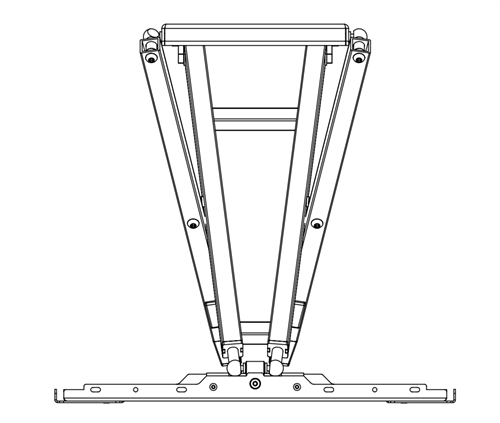

Articulating Arm Mounting Bracket
Interface Plate
