Portrait Landscape Rotation Wall Bracket for Planar SLM862 86" Displays

Planar SLM862 Portrait Landscape Rotation swivel bracket

Alternative Views:


Our Price: $1,290.00


Availability:: Usually Ships in 24 to 72 Hours
Product Code: P-ROTATE-PLANAR-SLM862

Description

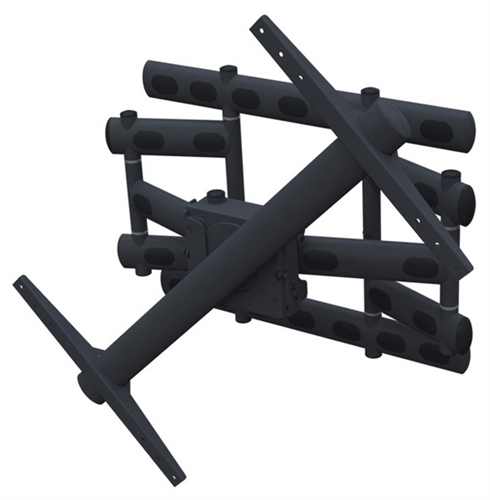

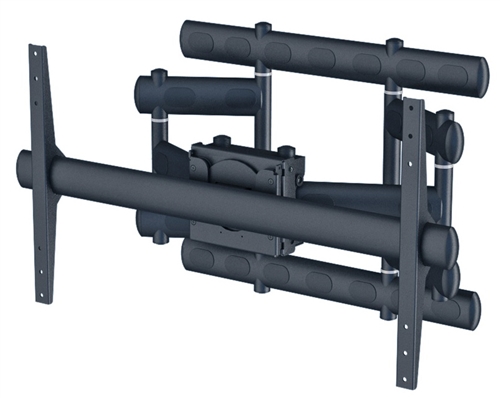

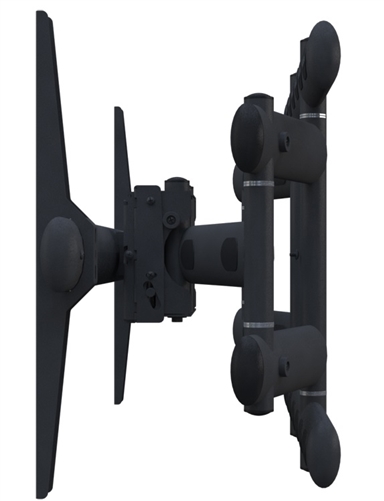

The super heavy duty articulating wall mount fits Planar SLM862 86 " 4K Touch Screen displays. Fully extended the mount sits 24.5 inches from the wall using heavy duty dual arms and is 8.5 in fully collapsed. Tilt adjustments of +/- 4 degrees are also included. One of the defining features of the mount is its capability to rotate an entire display 90 degrees - from landscape to portrait. This is easy to do, even with very heavy displays.

Important Notes:
1. Make sure the structure you are attaching the TV can handle the load of the mount weight of 90lbs plus the TV weight as well as load applied with arm extended from wall.
Features
Fits 80" - 100" Large displays
Rotate Portrait and Landscape
500lb (226.80kg) Weight capacity

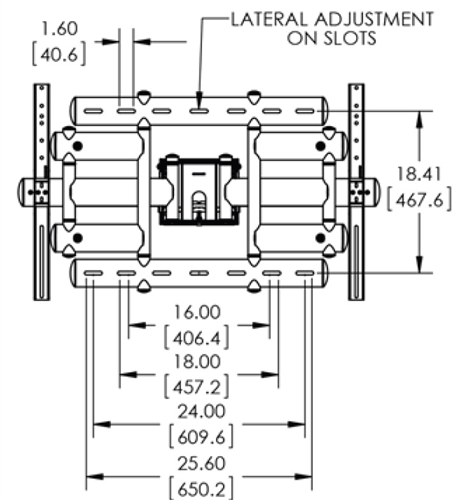

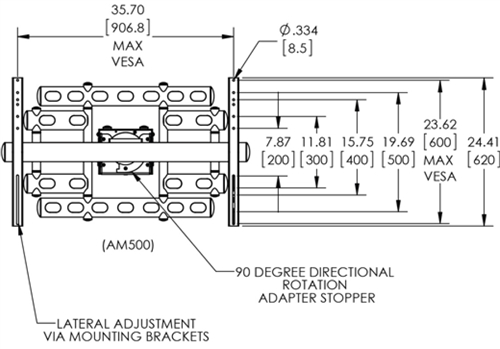

Max mounting pattern 900x600mm
VESA mounting patterns 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm

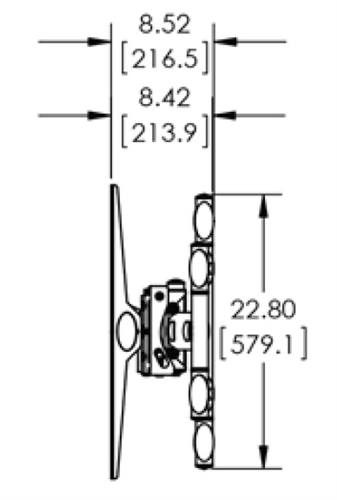

8.52” (216.4mm) Depth from wall

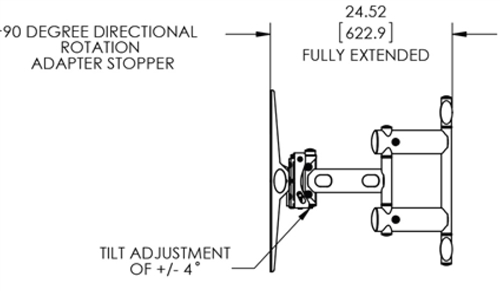

24.5” (622.3m) Max extension
10 degree swivel left and right
+4°/-4° Tilt
Rotation 90° Portrait or Landscape (No tools required)
Mounting surface wood stud, concrete or cinder block
Stud spacing dual stud 16” on center
Color black
Mounting hardware Included
Warranty 5-years
Mount weight without display 90.15 lbs
