Precision Crafted Swivel Wall Bracket for Planar SLM862 86" Displays

Planar SLM862 Custom Swivel Wall Bracket

Alternative Views:


Our Price: $1,540.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-SWIVEL-PLANAR-SLM862

Description


Wall Mount Overview

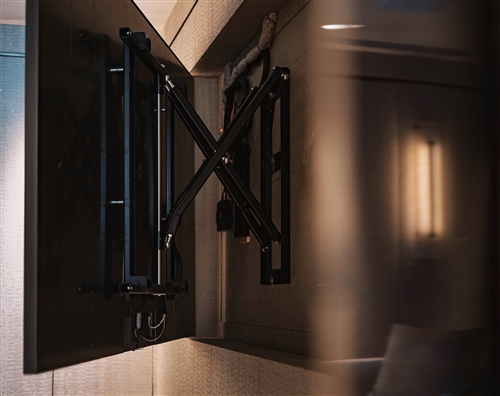

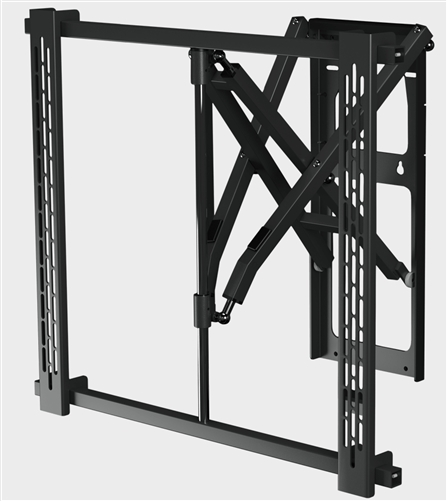

This ultra smooth precision crafted wall bracket allows Planar SLM862 86" 4K LCD Touch Screen displays to be moved smoothly and effortlessly in either direction. The bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Unique Scissor Design allows easy one handed operation
Solid Steel Construction Holds Screen Securely
Bi-Directional 34 degree swivel in either direction
264lb capacity

Note:This bracket does not have tilt adjustment.TV will remain just flat.

Features

Technical Description

Fits 80" - 100" Displays
264.55 lbs (119.7kg) Weight capacity

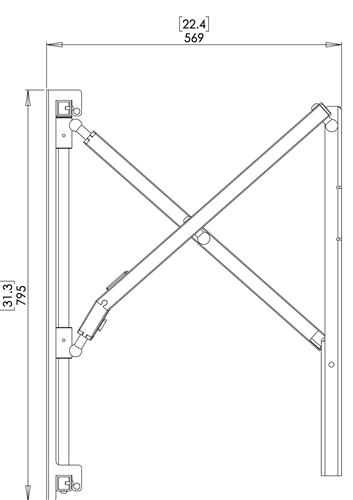

3.3" (84mm) Minimum Extension
22.4" (569mm) Maximum Extension:
34° Swivel:both left and right based
Tilt None
Maximum VESA mounting pattern 830x680mm (32.7" x 26.8")
VESA mounting patterns 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm, 800x600mm
Mounting surface wood joist, structural wood or structural concrete
Wall Plate dimensions 11.0" w x 28.1" h (279mm x 715mm)
Color Black
Mounting Hardware Included for attaching to TV, none for wall structure
