Portrait Position Tilting Wall Mount for NEC V652-AVT 65" Commercial Displays

NEC V652-AVT mounting bracket - Premier Mounts P4263TP

Alternative Views:

List Price: $329.00

Our Price: $253.00

Availability:: Usually Ships in 24 to 72 Hours
Product Code: PRE-P4263TP-NEC-V652-AVT

Description

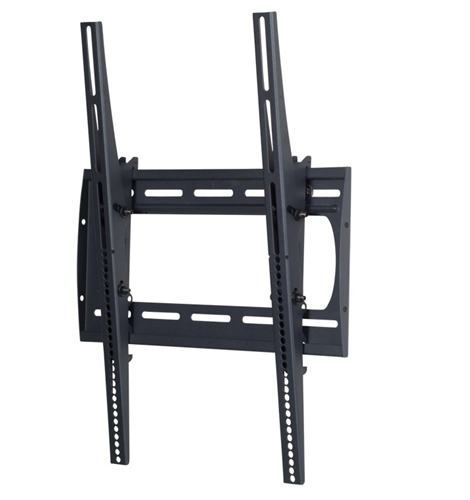

The P4263TP is a low-profile tilting digital signage portrait position mount for NEC V652-AVT 65" flat-panels. The bracket features post-installation leveling, lateral alignment, locking security barrels, and an open mounting frame for easy access to power sources and cables behind your NEC V652-AVT display. Great for digital signage usage in restaurants, hotels, motels, convention centers, sport venues, medical offices and many more.

NEC V652-AVT wall mount bracket requirements:
Weight without stand 114.4 lbs
VESA 400x400mm hole mounting pattern

Built-in lateral shift and post-installation leveling system
Mounting kit includes wood, concrete and steel stud attachment hardware
Open design for easy cable and electrical access
8º of continuous downward tilt
Holds flat-panel in portrait orientation 2 in. from the wall

Features

Portrait style mounting for NEC V652-AVT 65" flat panels
Depth from wall 2"
+8.00°tilt
Supports 175 lbs.

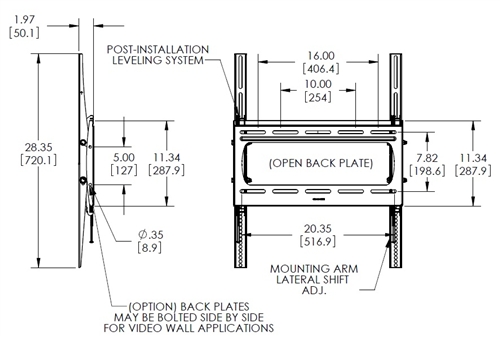

Built-in lateral shift Less than 2" (5.1cm) in depth
Mounts to 16" stud centers
Wall plate dimensions: 22" w x 11.3"
Vertical arm height: 27.58"
VESA 400x400mm ready
