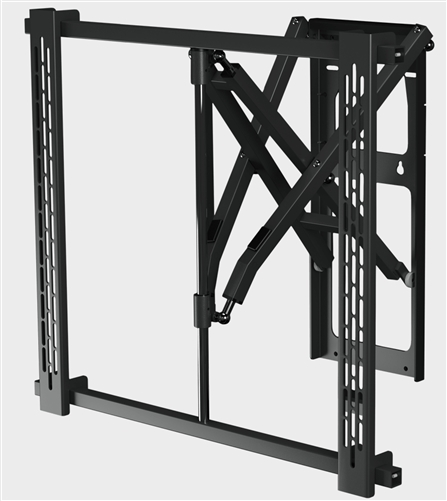

Custom 28 Deg Swivel Wall Bracket NEC E988 98" Display
NECE988 Extra heavy Duty Swivel TV Bracket

Alternative Views:
Our Price: $1,540.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-NEC-E988

Description


Wall Mount Overview

This ultra smooth precision crafted wall bracket allows NEC E988 98" Commercial displays to be moved smoothly and effortlessly in either direction. The bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish.

Wall mounting bracket requirements:
VESA 600x400mm mounting hole compatible
Support 142.4 lbs (TV weight without stand

Unique Scissor Design allows easy one handed operation
Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel of 28 degrees in either direction
265lb capacity

Note:This bracket does not have tilt adjustment.TV will remain just flat.

Features

Technical Description

Fits 80" - 100" Displays
265 lbs (120kg) Weight capacity
Maximum VESA mounting pattern 900x778mm (32.4" x 30.6")
VESA mounting patterns 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm, 800x600mm, 900x600mm
3.3" (84mm) Minimum Extension
22.4" (569mm) Maximum Extension:
28° Swivel:both left and right
Tilt None
Mounting surface wood joist, structural wood or structural concrete
Wall Plate dimensions 11.0" w x 28.1" h (279mm x 715mm)
Color Black
Mounting Hardware Included for attaching to TV, none for wall structure
