Motorized 90 Degree Swivel Wall Bracket for NEC E988

NEC E988 Motorized 90 Degree Swivel Wall Bracket

Alternative Views:


Our Price: $11,385.00


Availability:: Usually Ships in 12 Weeks
Product Code: FA-MOTORIZED-NEC-E988

Mount Installation

Prior to purchase consult a Professional contactor or installer for possible wall modifications.


Description Technical Specs


Motorized Wall Mount Overview

A dedicated NEC E988 98" UHD Professional Grade display motorized wall mount with full swivel up to 90 degrees swivel in one direction. The superbly smooth action, cable management, and neat mounting plate encapsulate the quality design with functionality and look unlike any other TV Mount on the market. A variety of mount options ensure that individual screens are mounted in the neatest possible way.

Wall mount requirements:
Fit VESA 600x400mm mounting holes
Support 142.4 lbs
Dimensions without stand: 86.8" x 49.2" x 3.3"

Parallel Track for beautifully tight recessed finish
90 degree swivel (on TVs 87.4" wide or less)
Smooth quiet motion
Full Cable Management

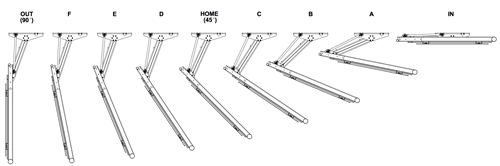

Range of preset positions
Magnetic wall covers provide a simple method of hiding all wall fixings.
The mechanism is available with either a clockwise or counterclockwise rotation.

Features

Technical Description

Fits 80- 98" displays
Variable speed electric motor
Programmable IR remote with presets
5.8" mount depth when collapsed

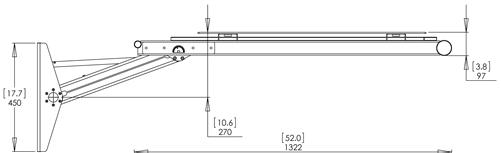

45" Extension from wall to screen center

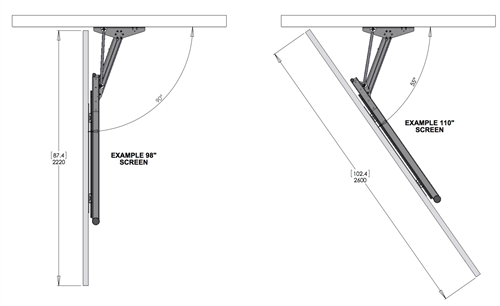

90° One Way on 87.4" wide or less (Choose clockwise or counter-clockwise)
55° One Way on 102.4" wide or less (Choose clockwise or counter-clockwise)
Integrated cable management system
Fits VESA sizes 400x400mm, 600x400mm, 800x400mm, 900x600mm
Wall plate dimensions: 17.7" w x 24.8" h
Color Black
240lb capacity
RS232 / Contact Closure / IR (RF Available)
1yr Manufacturer Warranty

Warning: Do not mount into metal studs.
