NEC C861Q-AVT3 Precision Crafted 22" Extension Swivel Wall Bracket

NEC C861Q-AVT3 Precision Crafted Swivel Wall Mount

Alternative Views:

Our Price: $1,540.00

Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-CUSTOM-NEC-C861Q-AVT3

Description

Wall Mount Overview

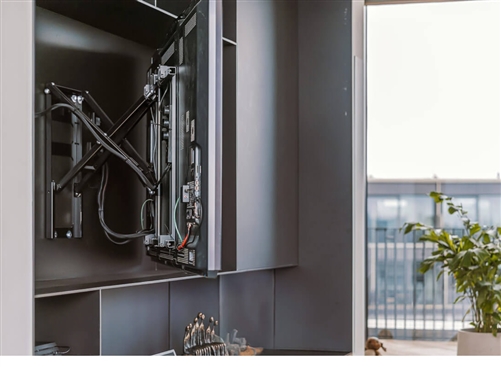

This ultra smooth precision crafted wall bracket allows NEC C861Q-AVT3 86" UHD Commercial displays to be moved smoothly and effortlessly in either direction. The bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish.

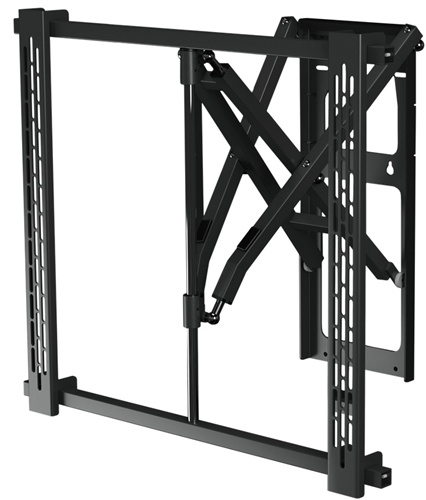

Unique Scissor Design allows easy one handed operation
Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel of 30 degrees in either direction
265lb capacity

Note:This bracket does not have tilt adjustment.TV will remain just flat.

Features

Technical Description

Fits 80" - 100" Displays
Fits TV types OLED, QLED, LED, LCD and Plasma
265 lbs (120kg) Weight capacity
Maximum VESA mounting pattern 822x778mm (32.4" x 30.6")
VESA mounting patterns 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm, 800x600mm
3.3" (84mm) Minimum Extension
22.4" (569mm) Maximum Extension:

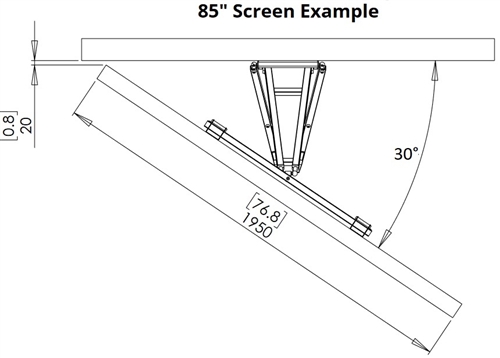

30° Swivel left and right
Tilt None
Mounting surface wood joist, structural wood or structural concrete
Wall Plate dimensions 11.0" w x 28.1" h (279mm x 715mm)
Color Black
Mounting Hardware Included for attaching to TV, none for wall structure
