Motorized 84" Travel Floating Above Ceiling TV Bracket for 90" Displays
Motorized Extended Travel Floating Ceiling Bracket\

Alternative Views:
Custom built to order. Allow 12- 14 weeks build time.
Specify TV make and model to be mounted on order comments.

Our Price: $18,500.00


Availability:: Built to Order 12 - 14 week lead time
Product Code: AD-MOTORIZED-CEILINGFLOAT-90IN

Color

Choose:
Custom Made Non-returnable

By checking this box you understand this Motorized Mount is custom made and Non - Returnable


Description


Motorized Ceiling Mount Overview

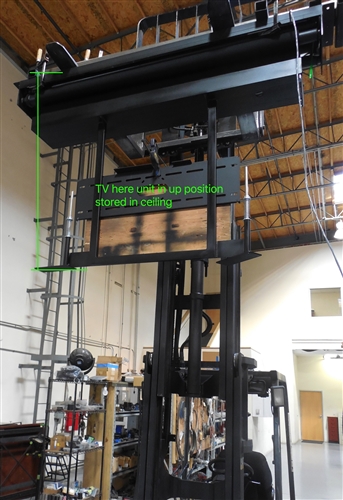

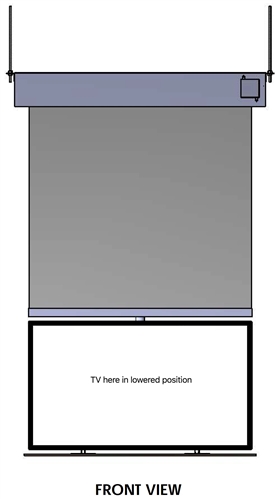

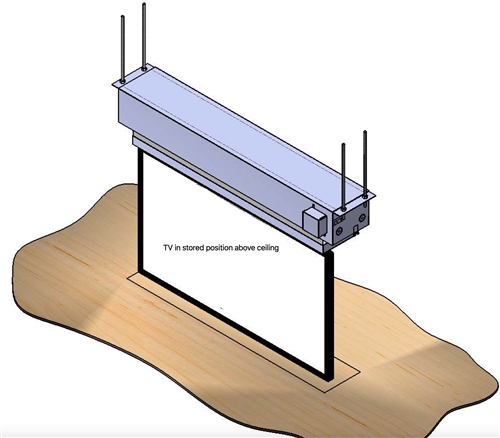

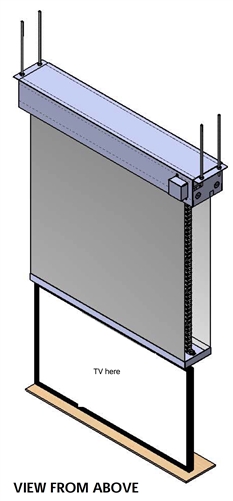

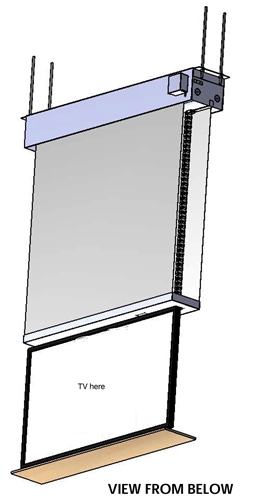

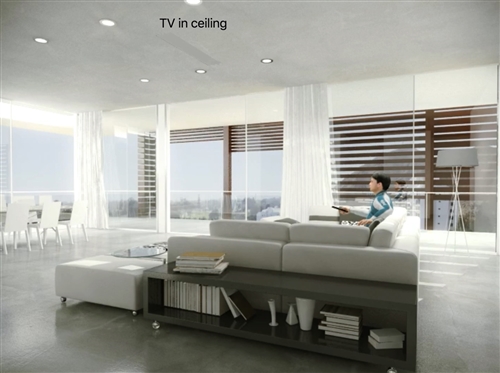

This new Motorized Extended Travel Inverted TV Lift is a vertical ceiling lift that allows a 90" Flat Screen Television to be concealed in a ceiling void and lowered straight down 84" for viewing. The lid (not included) at the ceiling is a spring hinge operated kit which completes the automated appearance when the unit is returned back into the ceiling. Once your TV is fully lowered you may then raise or lower the unit to any desired height.

Super Quiet and Smooth Action

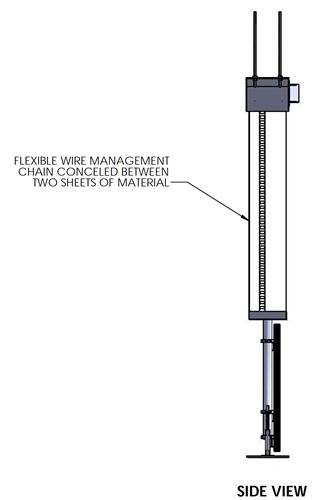

Full Cable Management
Travel time for 7ft is approximately 15 seconds
Wide Range of Mounting Options

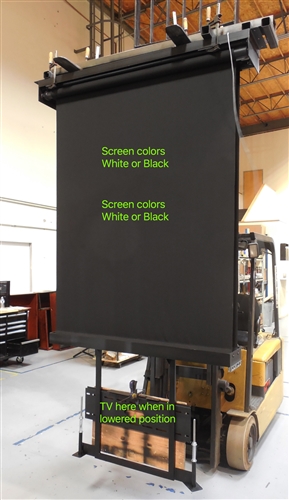

Two screen color fabrics Black or White
Installation Notes (Please read):

Space required above ceiling for mount and TV stored in attic or ceiling: 95-3/4" L x 58-3/4" H x 10-1/4" D2
Typically the unit hangs from all thread that is connected to ceiling above. Make sure structure can support the load be applied with the unit weight of 240 lbs + TV weight.
The bracket does not come with any cabinet enclosure to conceal the back of the TV or a lid to be used at the ceiling. Based on type of ceiling you will attach it to the lid spring operated adapter mechanism supplied.
Keep all moving parts concealed from dust, debris other foreign objects or pests that could damage electrical and moving parts.
Do not allow children or anyone to hang from mechanism when lowered or during any movement. Keep away from pinch points
Make sure you have an access panel to attic where the mount is stored to perform and troubleshooting or maintenance repairs that may arise.
Have installer put cable management system close to either end of the unit for easier access when lowered. Something that they can reach from the end if the need should arise.
Buyer Note: Because the mount is custom built to order be sure to specify at checkout on order comments section make and model TV to be mounted. Email us with any questions or concerns before purchase.
Features

Technical Descriptions

Fits most 90" LED, LCD or Plasma TV displays
Lowering distance 84"
150 lbs Max TV weight
Spring loaded Lid Flap Actuator (lid not included)
Cable management

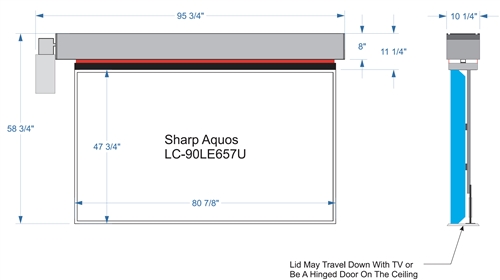

Mount Dimensions 95-3/4" L x 58-3/4" H x 10 1/4" D
Weight of the mount without TV 240 lbs
Controls RS232, Contact Closure and IR remote included
Electrical 110 volt ( super quiet motor)Mounting to ceiling Unit will hang from all thread rods that are connected to ceiling structure above
Screen Color Black or White
Manufacturer Warranty 4 years
