Future Automation LSM5 Motorized Lift TV Bracket 50" - 55" TVs

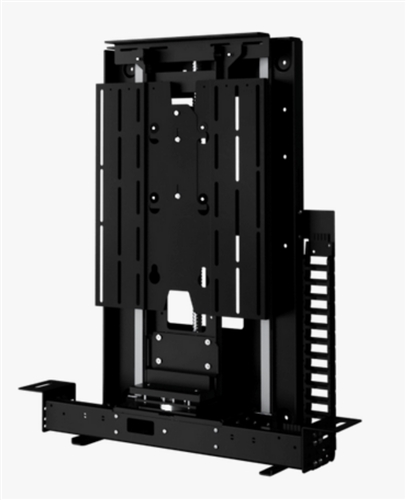

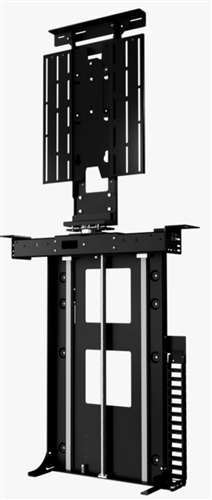

Future Automation LSM5 Motorized TV Actuator Lift Bracket

Alternative Views:
Cabinet and Lid Not Included
Our Price: $4,356.00


Availability:: Usually Ships in 24 to 72 Hours
Product Code: FA-LSM5

Description

This Future Automation LSM5 motorized lift mechanism is ideal for concealing screens from approximately 50" to 55" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.

Cabinet and Lid Not Included.
Features

Technical Description

Fits 50' - 55" displays
110 lbs (55kg) Max Lift Capacity Residential Use
66 lbs (30kg) Marine use
VESA 200x200mm - 400x400mm
Max Screen Height 28-3/4" (730mm)
Internal cabinet height 34-5/8" (880mm)
Internal cabinet width: Screen width + 3-15/16" (100mm)
Maximum cabinet lid thickness 13/16" (20mm)
Control Options Contact Closure, IR, RS232
Movement Type Motorized
Power Supply 110V or 240
Power Consumption: 250W - 500W
Cabinet and Lid not included
Color Black
Instructions Included Yes
