Motorized Hinged Swing Down Ceiling Bracket for 50" - 55" TVs

Future Automation CHR5 Motorized Hinged Ceiling TV Bracket

Alternative Views:


Custom made to order.
Please allow 10-12 weeks build time.

Our Price: $11,088.00


Availability:: 10 - 12 weeks
Product Code: FA-CHR5-MOTORIZED-CEILING

Mount Installation

Prior to purchase consult a Professional Installer or Contractor for ceiling modifications needed.


Description


Motorized Ceiling Mount Overview

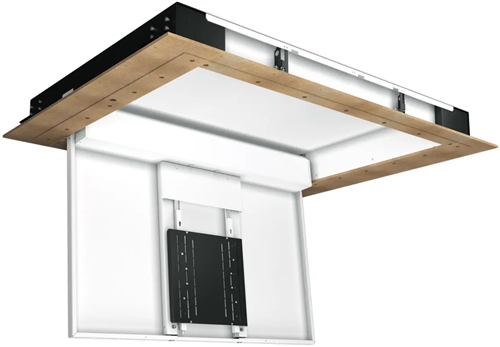

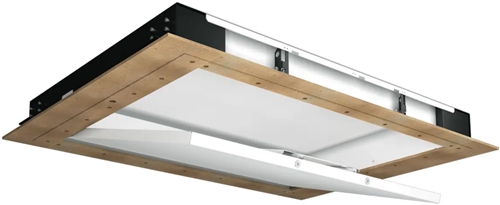

This Future Automation CHR5 motorized ceiling mount allows a 50" - 55" television to be concealed horizontally within a ceiling and hinged down 100 degrees for viewing. The near silent motor system adds to the effortless and smooth transition from the concealed to viewing position. Ideal for when there is limited ceiling void space that allows large screens to be concealed unobtrusively within relatively small ceiling areas and offers a great space saving option for when floor or wall space is not available.

This motorized mount is custom built to specification.

Near Silent Motor System
Modular Format ensures simple installation

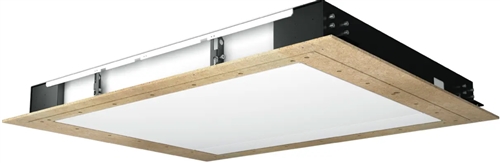

An MDF "Plaster In Edge" allows for a neat installation into the ceiling, eliminating any visible on ceiling flange around the mechanism, with only the smallest of shadow gaps around the lid when closed
The unit is delivered ready to install as one whole unit

Features

Technical Description

Fits 50" - 55" displays
Supports 88 lbs (40kg)

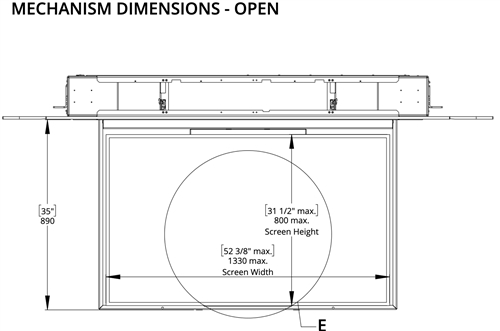

Maximum TV size: 52 3/8" x 31 1/2" x x 3 15/16" (1330 x 800 x 100mm)

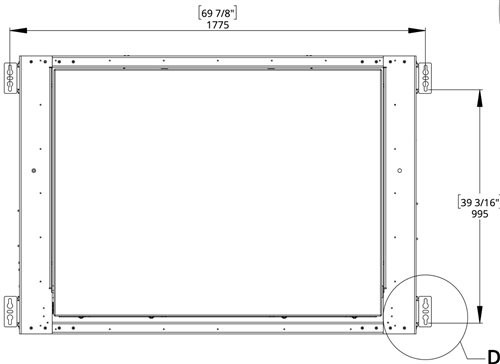

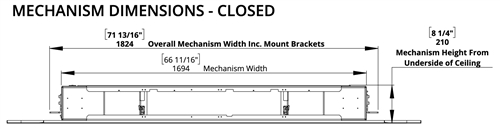

Ceiling void required: 66-11/16" x 46-5/8" 51.4" x 8-1/4" (1694 x 1185 x 210mm)
The control system can be operated via infra-red, RS232 or contact closure
IR remote included
Variable speed electric motor
Power Supply required 110V - 240V AC 50/60Hz Power supply required
Power consumption Max 720W
Power consumption standby: 3W
Programmable IR remote with presets Integrated cable management system
VESA hole spacing Minimum: 200mm x 200mm (7 7/8" x 7 7/8")
VESA hole spacing Maximum: 400mm x 400mm (15.8" x 15.8")
Color: White
Unit weight 265 lbs (120kg) without TV
2 year Manufacturer Warranty from date of purchase
