Motorized 90 Degree Swivel Wall Bracket for Samsung QN75Q7FAMFXZA
Electric Swivel TV Wall Bracket for Samsung QN75Q7FAMFXZA

Alternative Views:
Our Price: $11,385.00


Availability:: Usually Ships in 12 Weeks
Product Code: FA-MOTORIZED-SAMQN75Q7FAMFXZA

Mount Installation

Prior to purchase consult a Professional contactor or installer for possible wall modifications.


Description

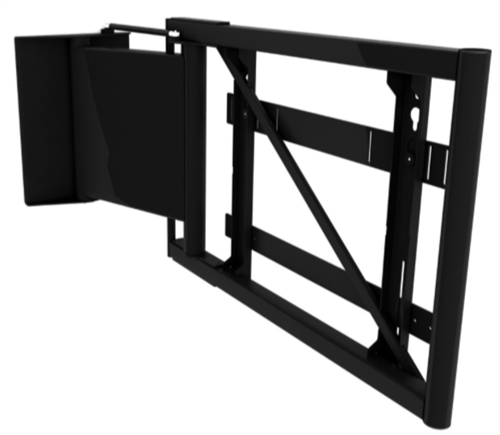

A dedicated Samsung QN75Q7FAMFXZA 75" TV motorized wall mount with full swivel up to 90 degrees swivel in one direction. The superbly smooth action, cable management, and neat mounting plate encapsulate the quality design with functionality and look unlike any other TV Mount on the market. A variety of mount options ensure that individual screens are mounted in the neatest possible way.
  • Parallel Track for beautifully tight recessed finish

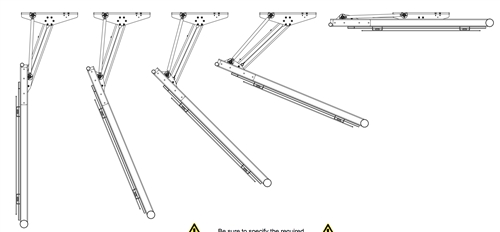

  • 90 degree swivel (on TVs 87.4" wide or less)
  • Smooth quiet motion
  • Full Cable Management
  • Range of preset positions
  • Magnetic wall covers provide a simple method of hiding all wall fixings.
  • The mechanism is available with either a clockwise or counterclockwise rotation.

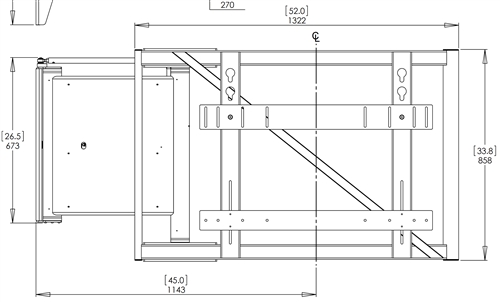

Wall plate dimensions: 17.7" w x 24.8" h


Mounting notes please read:

1. Screens with a width of more than 87.4" (2220mm) will not be able to achieve the full 90 of rotation.
2. The maximum viewing angle of a 102.4" (2600mm) wide screen is 55 .
Features

  • Fits Samsung QN75Q7FAMFXZA 75" displays
  • Variable speed electric motor
  • Programmable IR remote with presets

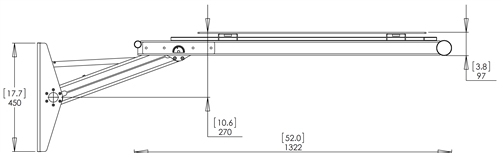

  • 5.8" depth collapsed
  • 45" Extension from wall to screen center
  • 90° One Way on 85" wide or less (Choose clockwise or counter-clockwise)
  • 55° One Way on 86" - 102" wide or less (Choose clockwise or counter-clockwise)
  • Integrated cable management system
  • Fits VESA sizes 400x400mm
  • Wall plate dimensions: 17.7" w x 24.8" h
  • Color: Black
  • 240lb capacity
  • RS232 / Contact Closure / IR (RF Available)
  • 1yr Manufacturer Warranty


Warning: Do not mount into metal studs.
