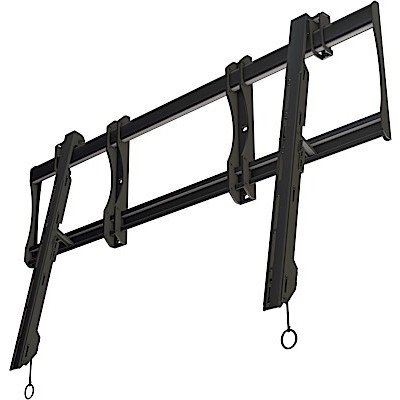

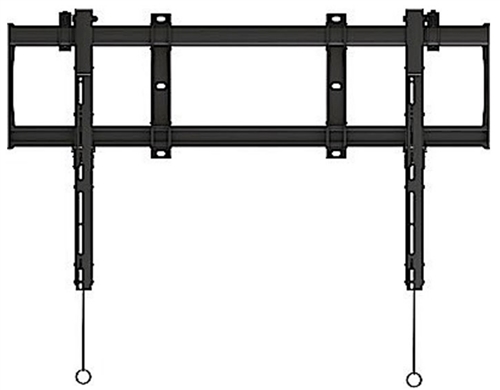

Extra Heavy Duty Flat Wall Mount for Clevertouch UX PRO Edge 86" Displays
Clevertouch UX PRO Edge Extra Heavy Duty Flat Wall mount

Alternative Views:
Our Price: $798.00


Availability:: Usually Ships in 24 Hours
Product Code: CR-FLAT-UX-PRO-EDGE-86IN

Description


Wall Mount Overview

This commercial grade wall bracket with its 400lb capacity is the perfect match for Clevertouch 86" UX PRO Edge Touch Screen displays.

Universal design
VESA compatible
Lateral Shift with two independent shift points
Post-installation leveling compensates for uneven ceilings
Integrated kick stand and pivot functionality places display in Service Mode for easy wiring and service
Pre-sorted hardware pack
Features

Technical Description

Fits 70" - 100” TVs
Flat Fixed position
Fits TV types Monitors, LCD, LED and Plasma flat panel displays
400 lbs. (181kg) Capacity

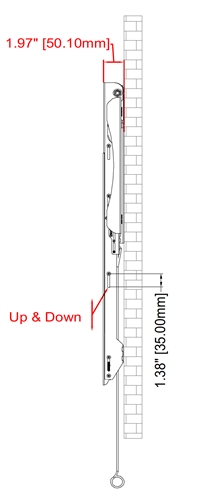

1.97" (31.75mm)Depth from wall
Lateral Shift Varies by screen width

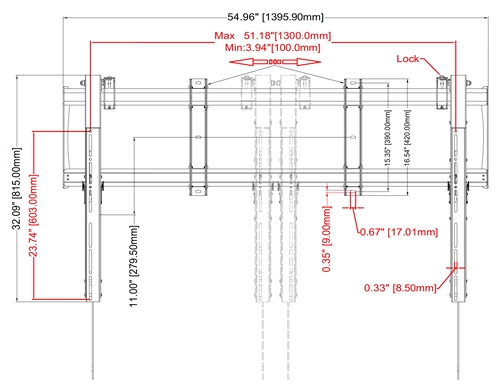

VESA maximum 1300x603mm
Supports the following VESA sizes 200x200mm, 300x300mm,400x400mm, 500x200mm, 500x300mm, 500x400mm, 500x500mm, 600x200mm, 600x300mm, 660x330, 600x400mm, 600x600mm, 800x200mm, 800x300mm, 800x400mm, 800x500mm, 800x600mm, 900x400mm, 900x600mm, 1000x200mm, 1000x300mm, 1000x400mm, 1000x500mm,1000x600mm
+-5 degrees Post Installation Leveling
Wall Plate dimensions 55" x 8.87" (1395mm x 222.25mm)
Wall Studs on 16, 20 and 24" centers

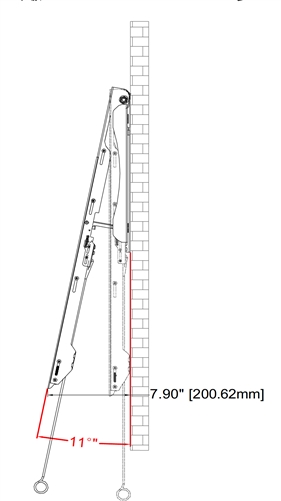

Lower kickstand extension 7.9"
Mounting hardware Included
Color Black
