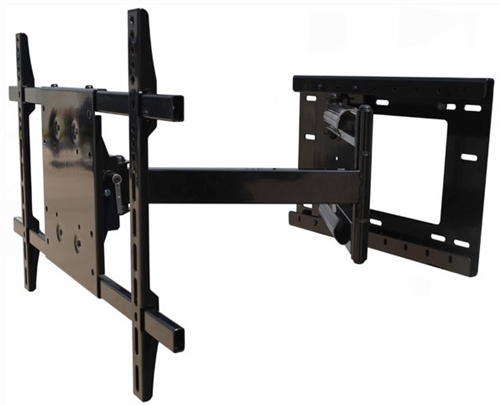

40" Extension 180 deg Swivel Articulating Wall Mount fits LG OLED55C7P

LG OLED55C7P Articulating TV Mount with 40 inch extension swivels left right 180 degrees

Alternative Views:


Our Price: $369.99


Availability:: Usually Ships in 24 Hours
Product Code: WMW-DUALSTUD40-LG-OLED55C7P

Description


Wall Mount Overview

This articulating wall brackets fits LG OLED55C7P C7P 55 inch displays. This super long extending TV mount with its 40" long arms offers maximum adjust ability, including horizontal extension, 180º swivel left/right as well as adjustable tilt capabilities. The wall plate attaches to studs on 16" centers. The perfect mounting bracket for deep cabinets, Amoire or viewing around a corner in another room.

  • Smoothly articulates pulling in or out for an awesome view from any seat in the room. Extend out 40.0" & swivel to position your TV perfectly for viewing your favorite shows. The TV sits only 3.0" from the wall when fully recessed.
  • Our durable steel mount is designed to accommodate VESA patterns up to 600 x 400 & TVs up to 70”. In the box you get an extensive and updated hardware packet to ensure compatibility.
  • Landscape orientation
  • Our easy to follow instructions makes the install process mounting your TV a breeze in under 30 minutes. Mounting has never been easier. This mounts wall plate attaches to studs on 16" centers.
  • Window glare bugging you? 15º tilt capability makes adjusts easy. No tools and no fuss.
  • The arm has cable management tunnels attached to help conceal cables and cords
  • The two piece designed wall plate allows shifts 6" left or right of center at wall plate for centering your TV on uneven wall stud locations
  • We’re here for you. Wall Mount World has a staff of TV mount experts that are available 7 days a week to help you finish your project and answer any questions.


Warning: Do not mount into metal studs, brick or concrete. Extreme arm extension could cause pull out of wall screws.

Features

Technical Description

Fits 32" - 70" LED, LCD, OLED, Plasma flat panels
Minimum width TV 37" wide to hide arm behind TV when collapsed
Landscape Orientation

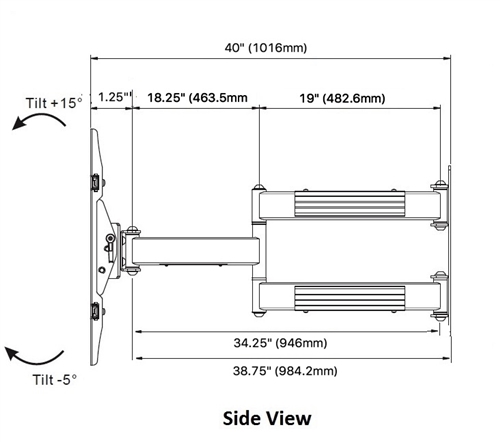

3.0” (76.2mm) Minimum Extension
40" (1016mm) Maximum extension
Tilt adjustable +1/-15°
90° Swivel both left and right on TVs 70" wide or less
+/-3° Roll adjustment for leveling
125lb (56.6kg) Weight capacity

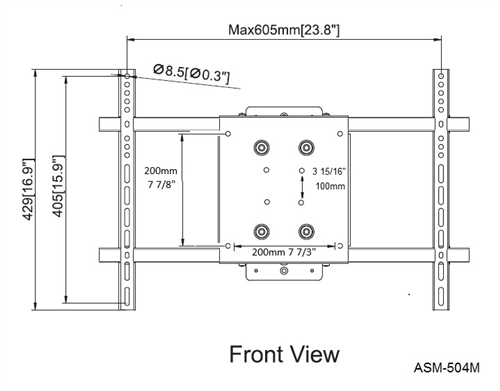

Max mounting pattern 600x400mm (23.62" x 15.74")
Compatible VESA mounting patterns:200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm

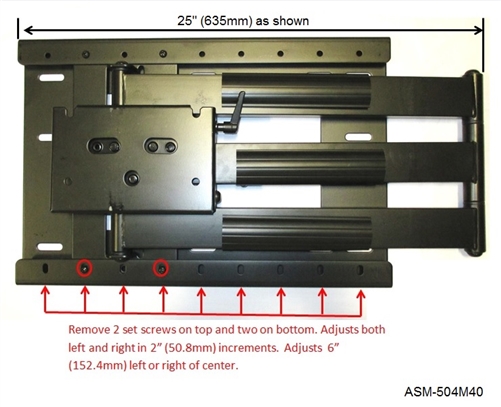

Lateral shift adjustment of 6" left or right in 2” increments

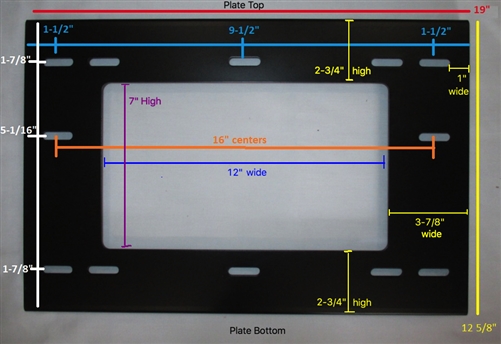

Wall Plate Dimensions: 19.0" W x 12 .6” H
Wall plate attaches to dual studs 16” on center
Mounting surface: wood stud, concrete (minimum concrete thickness 8")
High-grade cold rolled steel construction
Cable Management channels attached to arms
Color Black
Model number ASM-504M40
